全新本田 (8/9.9/15HP) 水泵葉輪 19210-ZV4-651 18-3247 500343

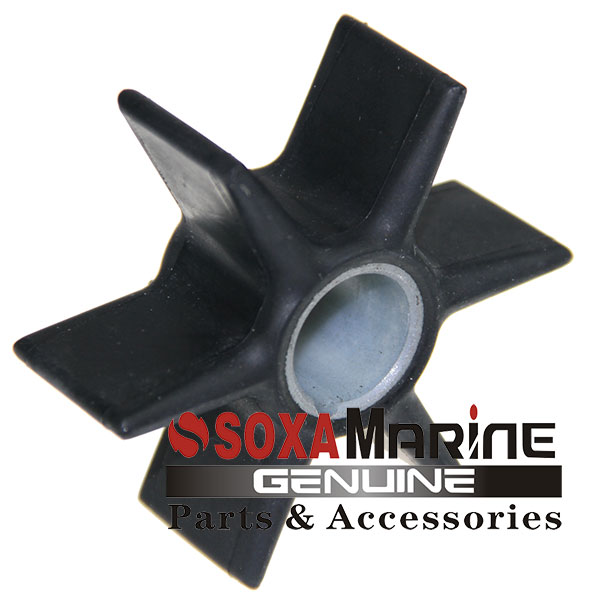

New Water Pump Impeller for HONDA (8/9.9/15HP) 19210-ZV4-651 18-3247 500343
用于售后市場It was used for aftermarket Ref:
本田水泵葉輪 19210-ZV4-651
Sierra 18-3247
CEF 500343
葉片數量：6
深度/高度/寬度：28.37m
外葉輪直徑：40.95mm
內軸插入件/輪轂直徑：14.11mm
凈重：42g
發動機馬力型號年份備注
9.9 BF9.9AM 1997 短軸 – 15″
9.9 BF9.9AM 1997 長軸 – 20″
9.9 BF9.9AM 1997 超長軸 – 25 英寸
9.9 BF9.9AW
BF9.9AX
BF9.9AY 1998 – 2000
15 BF15AM 1997 短軸 – 15 英寸
15 BF15AM 1997 長軸 – 20 英寸
15 BF15AM 1997 超長軸 – 25 英寸
15 BF15AW
BF15AX
BF15AY
BF15A1
BF15A2 1998 – 2002
It was used for aftermarket Ref:
HONDA water Pump Impeller 19210-ZV4-651
Sierra 18-3247
CEF 500343
No. Blades: 6
Depth /Height/ Width: 28.37m
Outer/External impeller diameter: 40.95mm
Internal shaft insert/hub diameter: 14.11mm
Net Weight:42g
Engine HP Model Year Notes
9.9 BF9.9AM 1997 Short Shaft – 15″
9.9 BF9.9AM 1997 Long Shaft – 20″
9.9 BF9.9AM 1997 Extra Long Shaft – 25″
9.9 BF9.9AW
BF9.9AX
BF9.9AY 1998 – 2000
15 BF15AM 1997 Short Shaft – 15″
15 BF15AM 1997 Long Shaft – 20″
15 BF15AM 1997 Extra Long Shaft – 25″
15 BF15AW
BF15AX
BF15AY
BF15A1
BF15A2 1998 – 2002
如果您需要購買葉輪產品并且無法辨別型號的橡膠葉輪設備，請按下面的圖片所示，提供給我們?nèi)~輪的A、B、C值以及驅動方式(INSERT TYPE)，我們會盡力給您找到對應的配件。
